SAP interfacing: REST

REST ABAP rest library

The SAP ABAP stack can also interface using REST protocol. To support this interface protocol SAP has developed special classes in the ABAP stack.

Questions that will be answered in this blog are:

  • How do I create a REST interface in ABAP stack?
  • How do I test a REST interface in ABAP stack?
  • Which tools to use to developer REST interface?

REST in ABAP

SAP delivers in the ABAP netweaver stack the ABAP REST library. The full specification can be found on the SAP help portal. The help portal also contains a small tutorial. Next to the pre-delivered REST library classes there are no tools for you available to faster develop REST in ABAP. It is coming down to SE24 and SE80.

Good reference blog is the SAP blog on usage of REST in Netweaver 7.4. This also explains the generic REST architecture implementation in ABAP.

Creating REST service in ABAP

We will create a simple Hello World REST service in ABAP. There are 2 main classes in REST ABAP: the application class handling the URL and the resource class where the logic is.

Start transaction SE24 and create a new class inheriting from the SAP delivered class CL_REST_HTTP_HANDLER:

REST create class

important here to press the inheritance button! Fill out CL_REST_HTTP_HANDLER as superclass:

REST create class as inheritance

It is mandatory to redefine the GET_ROOT_HANDLER method:

For now just leave the method empty. Save and generate.

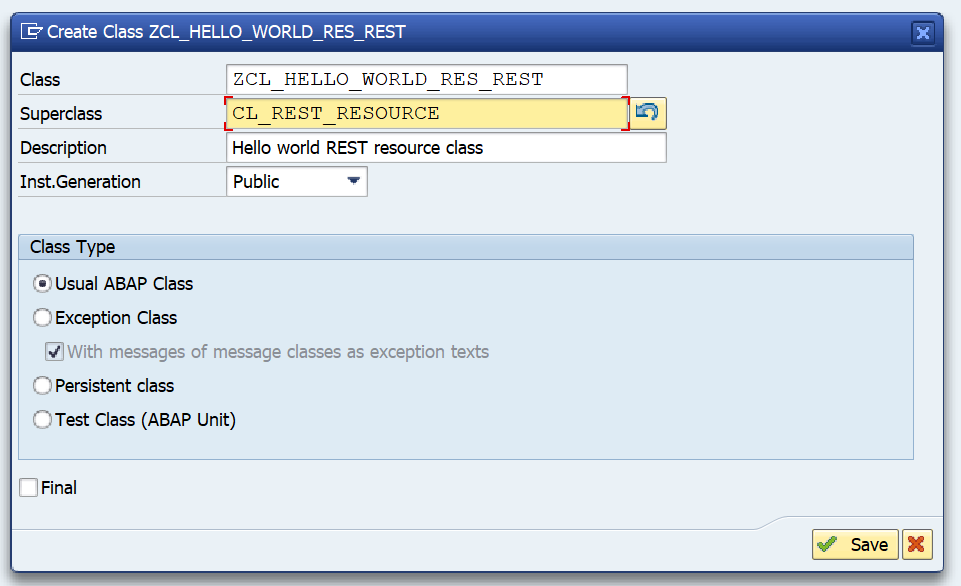

Now create the REST resource class based on inheritance of CL_REST_RESOURCE:

REST define resource class

Now redefine the GET method:

REST resource class redefine GET method

No we add a simple implementation by simply adding the text ‘Hello World’:

REST resource class GET method implementation

Save and activate this class.

Now we go back to the previous class: the application class. In here we now edit the GET_ROOT_HANDLER implementation we left empty earlier:

REST implementation of root handler

If the URL is getting the input /hello then the handler class (our resource class) ZCL_HELLO_WORLD_RES_REST is called. This class will return the string.

Save and activate again. The coding work is done.

Runtime implementation

Now we need to make a runtime implementation. Goto transaction SICF and select the main node default_host first. Then select from the menu Service/Host the option Create Service:

REST SICF create service

Fill out the name of the service and click ok. In the next screen give a description and in the Handler List section refer to the application class ZCL_HELLO_WORLD_REST:

REST SICF handler

Save the service. The service is created but not active. To activate right click on the service and select Activate:

REST SICF activate service

Testing the service

From the previous SICF screen right click the service again and select the option Test Service. A screen will come that says “No suitable resource found”. Now modify the URL by adding /hello after the test in the URL, and press enter again:

REST SICF test service

The URL build up: the test is the name defined in SICF. The /hello was defined in the application class.

Authorizations and security

The REST library has no specifics about authorization and security. So you have to take care your self.

Business authorization security: has to be built in via AUTHORITY-CHECK statements at the correct spots.

Technical security is provided in the Logon Data tab on the SICF node. Here you can set requirements for the technical logon method and if you only allow https.
