SAP netweaver gateway FIORI user measurement and usage

SAP FIORI is used more and more. In some cases you need information about how much the FIORI tiles are actually used.

This might be interesting for IT management, but also for license measurement.

Listing users that have used SAP FIORI gateway

Weird but true, SAP does not out-of-the-box delivers a program to list the users that are using SAP FIORI. Install the Z program delivered in OSS note 2446887 – How to get a list of users that have used SAP Gateway to get this report.

FIORI metering

SAP netweaver gateway comes with an onboard set of metering transactions and programs. These are unfortunately not widely known. Background OSS note is 2237375 – SAP Netweaver Gateway Metering FAQ.

Program /IWFND/R_METERING_VIEW can be used to view the metering data for FIORI ODATA calls:

This measures which calls are made, duration of the calls, size of the calls, user that made the call, browser type from which the call came, etc.

Report /IWFND/R_METERING_AGGREGATE is used to aggregate this data. /IWFND/R_METERING_DELETE can be used to delete old data.

User measurement on FIORI

User measurement program USMM is firing function module /IWFND/METERING_AUDIT to retrieve information about usage of FIORI in your system.

FIORI App Recommendations

SAP has a tool called FIORI app recommendations to give you a view on potential FIORI apps you might be able to use. The source is the ST03 usage data from your system.

Questions that will be answered in this blog are:

  • How to run the FIORI app recommendation tool?
  • How to feed it with the ST03 data?
  • How to view the results of the FIORI app recommendation tool?

Running the analysis

Goto the Fiori Reference Library. There you will find a button to go to the FIORI app recommendations tool:

Create a new analysis:

In step 2 you need to upload the ST03 usage profile in CSV format. This is described in this SAP help file. So first create the file (in short, goto ST03, select last month, transaction profile standard, download to xls, remove header and save as CSV), then upload it in this step:

Upload front end and backend profile (in case on S4HANA embedded FIORI these are identical):

Name the analysis in step 4 and press the button to get to the analysis results:

Viewing the results

In step 1 above now select view results:

Background information

More background can be found in OSS note 2696033 – How to Generate SAP Fiori App Recommendations.

FIORI app for monitoring data archiving jobs

SAP has delivered diverse apps for basis administrators.

This blog will explain about the data archiving batch job monitoring FIORI app.

Activating the app for monitoring data archiving jobs

The full activation manual is published on the FIORI reference library.

Short manual:

  • Activate SICF service bas_ilm_jobmon
  • Activate ODATA service ILM_JOB_MONITOR_SERVICE
  • Manually add the tile in your catalog (use edit home page and than add the app)

Using the app display email transmissions

The main FIORI app tile will already show the amount of failed jobs:

When you open the app the overview screen comes:

On the left hand side you can choose the archiving object. On the right hand side you can see the last archiving jobs for the selected object.

When you click on a job, you can see the details per job:

There are tabs for the job results, job log details and application log.

Bug fix notes

Bug fix OSS notes:

FIORI app for display mail transmissions

SAP has delivered diverse apps for basis administrators.

This blog will explain about the display email transmissions FIORI app.

Activating the app display email transmissions

The full activation manual is published on the FIORI reference library.

Short manual:

  • Activate SICF service nw_aps_om_eq
  • Activate ODATA service APS_OM_EMAIL_QUEUE_SRV
  • Manually add the tile in your catalog (use edit home page and than add the app)

Using the app display email transmissions

The main FIORI app tile will already show the amount of email transmission errors today:

By clicking the tile you reach the overview screen

By clicking the line you get details plus hints on the possible issue:

Transport set up for FIORI in app extensibility

In the previous blog we explained how to execute in app extensibility for an out-of-the-box FIORI app. This blog will explain how to transport the changes done.

Questions that will be answered in this blog are:

  • What setup do I need to do for transporting the in app flexibility content?
  • How to activate the needed apps for transporting in app flexibility content?
  • How to use the needed apps for transporting in app flexibility content?

Initial setup

To set up the transport mechanism for in app extensibility start transaction S_ATO_SETUP:

These are packages used to only store the data for the key user.

For the final transport, create in SE80 once a final package, for example ZKUFLEX:

Background explanation on this transaction is present in OSS note 2807979 – Information to setup Adaptation Transport Organizer for S/4HANA On Premise system via S_ATO_SETUP.

FIORI apps activation for transports of key user flexibility content


Activate the FIORI app Configure Configure Software Packages. Full instructions are available on the FIORI reference library.
Short summary:

  • Activate SICF services: NW_APS_ATO_CONF, NW_APS_ATO_LIB and NW_APS_LIB
  • Activate ODATA service: APS_EXT_ATO_PK_CFG_SRV
  • Acitvate PFCG roleSAP_NW_APS_EXT_ATO_PK_CFG_APP and assign to your user

Activate the FIORI app Register Extensions for transport. Full instructions are available on the FIORI reference library.
Short summary:

  • Activate SICF services: NW_APS_ATO_REGI, NW_APS_ATO_LIB and NW_APS_LIB
  • Activate ODATA service: APS_EXT_ATO_PK_AI_SRV
  • Activate PFCG role SAP_NW_APS_EXT_ATO_PK_AI_APP and assign to your user

Use of FIORI apps for transports of key user flexibility content

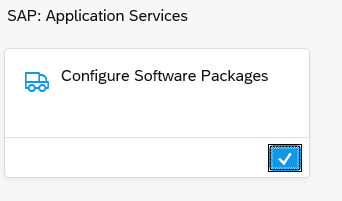

Add the apps to on the FIORI launchpad:

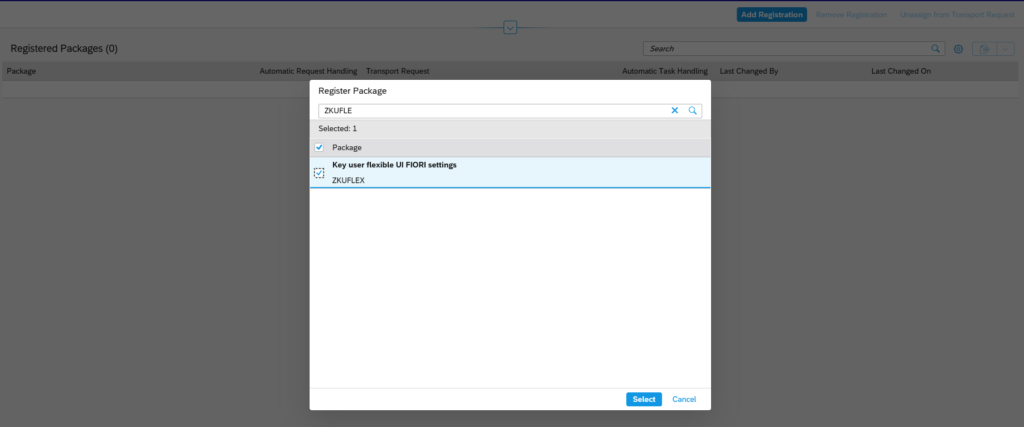

In the app Configure Software Packages add your permanent package you created in SE80:

Also assign a transport request here.

Now you can use the Register Extensions for Transport app to assign you extension to the package and transport:

Select the field and press the button Reassign to Package.

SAP references

Excellent overview blog can be found here.

SAP full help reference can be found here.

FIORI in app extensibility

The new generation of standard SAP FIORI apps can be easily be modified in layout and small extensions. This is called FIORI in app extensibility.

Questions that will be answered in this blog are:

  • How can I easily change the layout of a standard SAP FIORI app?
  • How can I hide fields or rename labels of a standard SAP FIORI app?
  • How can I extend a standard SAP FIORI app with a custom field?
  • Where can I find more background information on all possibilities for in app extension?
  • How do I technically enable in app extensibility?
  • How to enable in app extensibility transports?

Technical enabling of in app extensibility

Activate this SICF node: /default_host/sap/bc/lrep.

And assign authorization role SAP_UI_FLEX_KEY_USER to your user. Without the role, you will not get the needed menu item.

Cosmetic UI changes

We will use the app manage purchase requisitions as example. Go into the app and select a purchase requisition. At the point in time we want to make changes, we go to the Adapt UI menu option in the personal menu:

The Adapt UI screen will now open:

For example we will remove the block Batch. Select is and push the minus button to remove:

We do the same with Material supplier number.

And we want to change the location of the Desired vendor element: we use drag and drop to move it.

And we want to change the label Plant into the word Factory:

When we are done we publish the changes by hitting the Publish button:

Upon publishing the system will ask for a transport number to store the changes.

Best practice is to do the changes on development system and transport them (for the setup see below). Do not maintain UI changes directly on production.

Adding fields to the UI

We also want to add a new field to the UI. Select the block where you want to add a field and select the + symbol:

You can now add a field from the existing filed from the available business context:

Press Ok to add it.

If you want a new field, click on the + icon in the available fields. You are now redirected to the custom fields app:

Select the Plus icon now to create a new field:

As example we create a checkbox with title “Rush indicator”.

Choose Create and Publish. On the custom fields page, enable it for the correct apps:

Publish the changes.

Before you can use the field: please reload the app you were extending (server and UI definitions are out of sync).

Now go back into UI adaption mode and you are able to select the new field:

You can Publish now. New field is available for now for the users.

Data storage

In case you were wondering where this data field is stored: it is stored in the S4HANA database.

In SE11 for table EBAN (purchase requisitions), you can see a new extend with the new field:

For different objects different tables are present. You need functional/technical SAP background knowledge to know the exact table.

Setting up the transport mechanism

To set up the transport mechanism for in app extensibility read this dedicated blog.

In short: transaction S_ATO_SETUP:

Set you packages and setup. Then activate and use the FIORI apps for transporting key user adaptation content.

Background references

References:

  • SAP wiki on FIORI in app extensibility
  • SAP presentation on FIORI in app extensibility
  • SAP help on in app extensibility for making simple UI changes
  • SAP help on custom fields and logic
  • Example blog on extending customer master FIORI app

FIORI search setup

FIORI search is a very powerful tool for the end users. It enables a google like search on the business data.

Questions that will be answered in this blog are:

  • How does FIORI search work from the end user perspective?
  • How to set up FIORI search?
  • How to authorize search data?

FIORI search from end user perspective

From the end user perspective: open the search glass and key anything. Just like in Google:

Now wait for the search engine to give results:

Now you can select a record, or select a related app (with the … you get more options):

Set up of FIORI search

In the FIORI launchpad configuration parameters (see SAP help) make sure that the enableSearch is set to true. Otherwise the search icon does not appear.

In case you run a FIORI hub, make sure to setup the webdispatcher rules properly to the backend (see SAP help).

And activate the search models and the backend (see blog).

For the related links, the related FIORI app or FIORI factsheet must be activated. See this blog on how to fast activate complete groups of FIORI apps.

FIORI search authorizations

FIORI search relies on the authorizations of the end user. First make sure that the general authorization for the search is active in this IMG node:

The setting Model Authorization must be set to Check:

In the search cockpit (transaction ESH_COCKPIT), make sure that the user authorizations are indexed. In case of doubt run it under the Actions button, and select Index User Authority:

If one end user gets results and the other one does not get the same result: the main reason might be difference in authorizations.

Useful OSS notes

For specific use cases the following OSS notes might be relevant:

Set up FIORI notifications

This blog will explain the setup of FIORI notifications. They are sometimes also called FIORI push notifications.

The notifications on the FIORI launchpad are pushed to the end user on the top right part of the screen:

In this case 22 notifications are present.

Questions that will be answered in this blog are:

  • How to generically activate FIORI notifications?
  • Which specific settings do I need to perform to activate notifications for my specific workflow?
  • Hot to test FIORI notificaitons?
  • Where to find more background on FIORI notifications?

Setting up the FIORI notifications

Goto the customizing entry for notification channel configuration. We will set up the scenario for embedded FIORI. If you want to set up notifications for the FIORI gateway as a central step, more activities are required. These are listed at the sap help site.

Start with the Notification Hub RFC destination:

Set the destination to NONE and press execute:

Now set the backend system alias to LOCAL and press execute:

Now goto the menu entry for Manage Notification Providers to activate the desired ones:

Now we will setup the notification channel hub. Goto this customizing actions:

Start with the action Manage SAP System Aliases and map the LOCAL gateway to RFC destination NONE:

Now select the Publish the Notification ODATA Service entry and make sure the service /IWNGW/NOTIFICATION_SRV is published:

If not done, push the button Publish Service Groups, select LOCAL, press button Get Service Groups and search for /IWNGW/NOTIFICATION_SRV:

And publish it.

Now check in Manage WebSocket Endpoint that service NOTIFICATION_PUSH_APC is active:

In the customizing entry Activate and Maintain Push Channels, check that the push channels are properly active, and if not activate it:

Goto transaction SWF_PUSH_NOTIF1 to add the worflow task for push notifications. We will add task TS00008267 (this is used in the generic workflow verification):

Click on the text icon to maintain the text:

Make sure that in the technical job repository SJOBREPO (see blog) that the jobs for deadline monitoring and push notifications are running:

Testing the push notifications

Now you can start the verification workflow in SWU3 (see blog) or start test transaction /IWNGW/BEP_DEMO:

The results can be seen on the FIORI launchpad:

Notification icon not visible on the FIORI launchpad

If the notification is hidden, check the configurations in transactions /UI2/NWBC_CFG_SAP and /UI2/NWBC_CFG_CUST. It can be that an adminstrator has suppressed this function.

Background information

The minimum requirements for FIORI notifications are described in OSS note 2578256 – What is the minimum requirement for Fiori Notification?.

Configuration restrictions are listed in OSS 2729492 – Configuring notifications in Fiori Launchpad and known restrictions.

See this SAP help file on the topic for setup FIORI notifications.

See this SAP help file for notification channel troubleshooting.

See this SAP help file for end user tips & tricks with regards to FIORI notifications.

For custom development of FIORI push notifications, read this SAP blog.

For a very good and extensive full setup description for 1809 FIORI 2.0 description, read this SAP blog.

FIORI cache refresh

After update of a FIORI app UI5 code you will sometimes face issues that the browser or server still holds components from the old app version. This issue is there for both custom developed and for standard SAP UI5 apps. The root cause is the caching at multiple levels to assure highest performance. There are caches on frontend browser, gateway server and backend server.

Questions that will be answered are:

  • What do I need to do on the browser for refresh?
  • How do I clear the caches on the gateway frontend server?
  • How do I clear the caches on the backend server?

Browser cache refresh

After an update of the UI code best to clear the browser cache. In Chrome also: open the application in chrome and use key combination ctrl + shift + R to perform a hard reload.

Or run in Private or Incognito mode.

Best browser for testing is Chrome.

Gateway and backend server cache clearing

Use the following sequence to clear all caches:

1. Execute /IWBEP/CACHE_CLEANUP transaction in ECC system (or other backend system) as well as Gateway system.

2. Execute /IWFND/CACHE_CLEANUP transaction in Gateway system with checkbox checked.

3. In the gateway system, you need to do the below steps:

  • Goto transaction SMICM
  • Click on ‘Goto’ menu bar button
  • Select option ‘HTTP Plug-In’ Select option ‘Server Cache’
  • Select option ‘Invalidate Globally’

4. Execute report “/IWBEP/R_MGW_MED_CACHE_CLEANUP” in the back-end system and delete all the cached metadata.

5. Execute reports /UI2/INVALIDATE_GLOBAL_CACHES, /UI2/INVALIDATE_CLIENT_CACHES, /UI5/APP_INDEX_CALCULATE in front-end gateway system.

For the last program ( /UI5/APP_INDEX_CALCULATE) you can do a delta or full for all or for a specific application.

Note on the cache cleanup: 2319491 – How to clean up the cache after applying changes that affect SAP Fiori apps.

Background

More background on caching can be found in OSS note 2626394 – Troubleshooting Fiori Apps Cache issue – how to information.

S4HANA setup FIORI manage KPI tiles

Inside S4HANA there is a very powerful FIORI tile called the Manage KPI and Report function. This blog will explain how to setup this FIORI tile and how to make sure it is working properly.

It is assumed you have already enabled your S4HANA system for FIORI (see this blog).

Note: this blog will only explain the S4HANA 1909 and higher implementation. Previous versions of this functionality have more tiles and setup work.

Activating the Manage KPI and report function

Goto transaction STC01 and select task list SAP_FIORI_CONTENT_ACTIVATION:

In the task list select the business role SAP_BR_ANALYTICS_SPECIALIST:

Now run the task list and wait. If you have issues, please read this blog.

Assign then activated PFCG role SAP_BR_ANALYTICS_SPECIALIST to your user ID.

Checking the KPI and report FIORI tile

Start the FIORI launchpad (transaction /UI2/FLP) and check that the manage KPIs and Reports tile is now available:

Click on the tile and you come into the first screen. Top left you can choose between KPI and Reports. We will first start with inspecting the KPI. We will use Purchase Order Changes as example:

Details of the KPI:

Here you can see the Data source: CDS view C_POITEMCHANGECOUNT.

On the visualize tab you can see a preview of the tile:

Now we will inspect the report:

Here you can see it is a Generic Drilldown on the datasource C_POITEMCHANGECOUNT. Click to open the details:

You can push the button Show Preview to get a preview of the report:

In the section application details you can see the details for the tile:

Very important here is the catalog it belongs to. In PFCG assign the correct business role to your user: SAP_BR_BUYER. You can find this role in the FIORI reference library documentation for this tile.

After the role is assigned, start the FIORI app finder and search for the app:

Now this tile should work:

Background information

More background information can be found on the FIORI reference libary for the Manage KPIs and Report app:
