Custom program to mass cancel workflow items

Mass cancellation of work items is possible with the SWIA transaction as explained in this blog.

This blog will explain how you can use Z program to mass close like SWIA, but then in batch job mode, and automatically without user interaction.

The custom program

The custom program ZRSWIWILS_WI_CANCEL is basically a copy of standard SAP program RSWIWILS.

You can copy and paste the code from below source code text and add the text symbols and selection screen parameter text.

Start screen has 1 extra option more than standard SAP:

The program working explained

When the new option is selected, after the data fetching, the program simply calls function module SWW_WI_ADMIN_CANCEL to cancel the item. Since it is done in loop and without user interaction, the program can run in batch mode.

The custom program source code text

* Report ZRSWIWILS_WI_CANCEL
*----------------- Standard program RSWIWILS copy ---------------------*
*---------- This code is to extend existing functionality--------------*

REPORT zrswiwils_wi_cancel MESSAGE-ID swf_rep_base.

INCLUDE rswlfcod.
INCLUDE rswuincl.
CLASS cl_swf_rdg_dispatcher DEFINITION LOAD.

************************************************************************
*  Begin of Data                                                       *
************************************************************************
DATA: g_list_cnt TYPE sy-tabix.
DATA: zlt_wiheader TYPE swfatalvitm.
DATA: int TYPE REF TO if_swf_rep_workitem_selection.
DATA: tcode LIKE sy-tcode.
DATA: g_windows_titlebar TYPE string.
CONSTANTS: zlc_tcode  TYPE sytcode VALUE 'SWIA'.
*- type pools
TYPE-POOLS: slis.
TABLES: swfawrkitm.

*- select options
SELECTION-SCREEN BEGIN OF BLOCK b1 WITH FRAME TITLE TEXT-a01.

SELECT-OPTIONS: id FOR swfawrkitm-wi_id.
SELECTION-SCREEN END OF BLOCK b1.

SELECTION-SCREEN BEGIN OF BLOCK b2 WITH FRAME TITLE TEXT-a02.
SELECT-OPTIONS:
    type   FOR swfawrkitm-wi_type,
    state  FOR swfawrkitm-wi_stat,
    prio   FOR swfawrkitm-wi_prio,
    dhsta  FOR swfawrkitm-wi_dh_stat,
    task   FOR swfawrkitm-wi_rh_task,
    taskg  FOR swfawrkitm-wi_rh_task NO INTERVALS.
PARAMETERS: top_only TYPE xfeld.
SELECTION-SCREEN END OF BLOCK b2.

SELECTION-SCREEN BEGIN OF BLOCK b3 WITH FRAME TITLE TEXT-a03.
SELECT-OPTIONS:
    cd FOR swfawrkitm-wi_cd,
    ct FOR swfawrkitm-wi_ct NO-EXTENSION.
SELECTION-SCREEN END OF BLOCK b3.

SELECTION-SCREEN BEGIN OF BLOCK b6 WITH FRAME TITLE TEXT-a06.
PARAMETERS: p_cancel TYPE xfeld DEFAULT ' '.
SELECTION-SCREEN END OF BLOCK b6.

SELECTION-SCREEN BEGIN OF BLOCK b4 WITH FRAME TITLE TEXT-a04.
PARAMETERS: p_more TYPE swi_params-option AS CHECKBOX.
PARAMETERS: filter TYPE swf_utl002-clsname NO-DISPLAY.
PARAMETERS: p_swia TYPE xfeld NO-DISPLAY DEFAULT space. " note 1274031
SELECTION-SCREEN END OF BLOCK b4.

SELECTION-SCREEN BEGIN OF BLOCK b5 WITH FRAME TITLE TEXT-a05.
PARAMETERS: p_maxsel TYPE tbmaxsel.
SELECTION-SCREEN END OF BLOCK b5.

*-------------------------------------------------------------
INITIALIZATION.
*-------------------------------------------------------------
  cd-low = sy-datum.
  cd-sign = 'I'.
  cd-option = 'EQ'.
  APPEND cd.

*-------------------------------------------------------------
*- F4 functionality
*-------------------------------------------------------------
AT SELECTION-SCREEN ON VALUE-REQUEST FOR task-low.
  DATA: act_object_ext TYPE rhobjects-object.

  CALL FUNCTION 'RH_SEARCH_TASK'
    IMPORTING
      act_object_ext         = act_object_ext
    EXCEPTIONS
      no_active_plvar        = 1
      no_org_object_selected = 2
      no_valid_task_type     = 3
      OTHERS                 = 4.
  IF sy-subrc EQ 0.
    task-low = act_object_ext.
  ENDIF.

AT SELECTION-SCREEN ON VALUE-REQUEST FOR task-high.
  DATA: act_object_ext TYPE rhobjects-object.

  CALL FUNCTION 'RH_SEARCH_TASK'
    IMPORTING
      act_object_ext         = act_object_ext
    EXCEPTIONS
      no_active_plvar        = 1
      no_org_object_selected = 2
      no_valid_task_type     = 3
      OTHERS                 = 4.
  IF sy-subrc EQ 0.
    task-high = act_object_ext.
  ENDIF.

*-------------------------------------------------------------
START-OF-SELECTION.
*-------------------------------------------------------------
  PERFORM main USING p_more p_maxsel.

*---------------------------------------------------------------------*
*       FORM MAIN                                                     *
*---------------------------------------------------------------------*
*       ........                                                      *
*---------------------------------------------------------------------*
FORM main USING p_more TYPE xfeld
                p_maxsel TYPE tbmaxsel.
  DATA: field_lst    TYPE slis_t_fieldcat_alv,
        field_cat    TYPE slis_fieldcat_alv,
        is_layout    TYPE slis_layout_alv,
        is_variant   LIKE disvariant,
        it_sort      TYPE slis_t_sortinfo_alv,
        l_string     TYPE string,
        l_grid_title TYPE lvc_title.

*- prepare the list format (determine columns...)
  PERFORM prepare_format CHANGING field_lst
                                  field_cat
                                  is_layout
                                  it_sort.
  is_variant-report = sy-repid.

*- get the list from the database.
  PERFORM get_workitem_header USING    p_more
                                       p_maxsel
                              CHANGING zlt_wiheader.
*- check empty
  DATA: hits TYPE i.
  DESCRIBE TABLE  zlt_wiheader LINES hits.
  IF NOT hits IS INITIAL.

*- set table layout
    is_layout-cell_merge = 'X'.

*- set title
    is_layout-window_titlebar =
                  'Workitems Cancel'(001).

    g_windows_titlebar = is_layout-window_titlebar.
    PERFORM get_title USING hits
                            g_windows_titlebar
                            l_grid_title.
    is_layout-window_titlebar = l_grid_title.

    IF p_cancel IS NOT INITIAL AND zlt_wiheader IS NOT INITIAL.
* Cancel the work item
      PERFORM cancel_workitem TABLES zlt_wiheader.
    ENDIF.
*- call the CO function to display the list.
    CALL FUNCTION 'REUSE_ALV_GRID_DISPLAY'
      EXPORTING
        i_callback_program      = CONV syrepid( 'ZRSWIWILS_WI_CANCEL' )
        i_callback_user_command = 'CALL_UCOMM_WILIST'
        is_layout               = is_layout
        it_fieldcat             = field_lst
        it_sort                 = it_sort
        is_variant              = is_variant
      TABLES
        t_outtab                = zlt_wiheader
      EXCEPTIONS
        OTHERS                  = 1.
  ELSE.
    MESSAGE s003.
  ENDIF.

ENDFORM.                    "main

*---------------------------------------------------------------------*
*       FORM PREPARE_FORMAT                                           *
*---------------------------------------------------------------------*
*       ........                                                      *
*---------------------------------------------------------------------*
*  -->  FIELD_LST                                                     *
*  -->  FIELD_CAT                                                     *
*  -->  IS_LAYOUT                                                     *
*---------------------------------------------------------------------*
FORM prepare_format CHANGING field_lst TYPE slis_t_fieldcat_alv
                                 field_cat TYPE slis_fieldcat_alv
                                 is_layout TYPE slis_layout_alv
                                 it_sort   TYPE slis_t_sortinfo_alv.
  DATA: is_sort LIKE LINE OF it_sort.
  DATA: structure_name TYPE dd02l-tabname VALUE 'SWFAWRKITM'.
  DATA: lt_fieldcat TYPE lvc_t_fcat.
  DATA: ls_fieldcat TYPE lvc_s_fcat.
  DATA: wf_settings TYPE swp_admin.
  DATA: lh_aging_services TYPE REF TO cl_sww_daag_services.
  FIELD-SYMBOLS: <field_lst> LIKE LINE OF field_lst.

  is_layout-box_fieldname = 'B_MARKED'.
  is_layout-box_tabname   = 'WIHEADER'.

*- prepare sort
  PERFORM set_sort_tab CHANGING it_sort.

*- get fieldcatalog
  CALL FUNCTION 'LVC_FIELDCATALOG_MERGE'
    EXPORTING
      i_structure_name       = structure_name
    CHANGING
      ct_fieldcat            = lt_fieldcat
    EXCEPTIONS
      inconsistent_interface = 1
      program_error          = 2
      OTHERS                 = 3.

  LOOP AT lt_fieldcat INTO ls_fieldcat.
    IF ls_fieldcat-fieldname EQ 'WI_RHTEXT'.
      ls_fieldcat-lowercase = 'X'.
    ENDIF.
    MOVE-CORRESPONDING ls_fieldcat TO field_cat.
    field_cat-seltext_s = ls_fieldcat-scrtext_s.
    field_cat-seltext_l = ls_fieldcat-scrtext_l.
    field_cat-seltext_m = ls_fieldcat-scrtext_m.
    APPEND field_cat TO field_lst.
  ENDLOOP.

*- no reference for B_MARKED
  CLEAR field_cat-ref_tabname.
  field_cat-tech = 'X'.
  field_cat-fieldname = 'B_MARKED'.
  APPEND field_cat TO field_lst.
  CLEAR field_cat-tech.

*- set columns positions
  LOOP AT field_lst ASSIGNING <field_lst>.
    CASE <field_lst>-fieldname.
      WHEN 'WI_ID'.
        <field_lst>-col_pos = 1.
      WHEN 'WI_STAT'.
        <field_lst>-col_pos = 2.
      WHEN 'WI_CHCKWI'.
        <field_lst>-col_pos = 3.
      WHEN 'TYPETEXT'.
        <field_lst>-col_pos = 4.
        <field_lst>-outputlen = 15.
      WHEN 'WI_RH_TASK'.
        <field_lst>-col_pos = 5.
        <field_lst>-outputlen = 11.
      WHEN 'WI_CD'.
        <field_lst>-col_pos = 6.
        <field_lst>-outputlen = 10.
      WHEN 'WI_CT'.
        <field_lst>-col_pos = 7.
        <field_lst>-outputlen = 8.
      WHEN 'WI_TEXT'.
        <field_lst>-col_pos = 8.
        <field_lst>-outputlen = 80.
      WHEN 'WI_CONFIRM'.
        <field_lst>-col_pos = 9.
      WHEN 'WI_REJECT'.
        <field_lst>-col_pos = 10.
      WHEN 'WI_PRIOTXT'.
        <field_lst>-col_pos = 11.
      WHEN 'RETRY_CNT'.
        <field_lst>-col_pos = 12.
      WHEN 'TOP_TASK'.
        <field_lst>-col_pos = 13.
      WHEN OTHERS.
        <field_lst>-col_pos = 999999.
    ENDCASE.
  ENDLOOP.
  SORT field_lst BY col_pos.
  LOOP AT field_lst ASSIGNING <field_lst>.
    <field_lst>-col_pos = sy-tabix.
  ENDLOOP.

*- set standard layout
  CLEAR field_cat.
  field_cat-no_out = 'X'.
  MODIFY field_lst FROM field_cat TRANSPORTING no_out
     WHERE fieldname EQ 'WI_LANG' OR
           fieldname EQ 'WI_TYPE' OR
           fieldname EQ 'VERSION' OR
           fieldname EQ 'WI_PRIO' OR
           fieldname EQ 'NOTE_CNT' OR
           fieldname EQ 'WI_RELEASE' OR
           fieldname EQ 'STATUSTEXT' OR
           fieldname EQ 'TCLASS' OR
           fieldname EQ 'WI_DH_STAT' OR
           fieldname EQ 'RETRY_CNT' OR
           fieldname EQ 'WLC_FLAGS' OR
           fieldname EQ 'TOP_TASK' OR
           fieldname EQ 'AGING_STATE' OR
           fieldname EQ 'AGING_TEMPERATURE'.

*- delete aging fields if not applicable
  lh_aging_services = cl_sww_daag_services=>get_instance( ).
  IF lh_aging_services->aging_enabled( ) NE 'X'.
    DELETE field_lst WHERE fieldname EQ 'AGING_STATE'
                        OR fieldname EQ 'AGING_TEMPERATURE'.
  ENDIF.

*- set checkboxes
  CLEAR field_cat.
  field_cat-checkbox = 'X'.
  MODIFY field_lst FROM field_cat TRANSPORTING checkbox
     WHERE fieldname EQ 'WI_CONFIRM' OR
           fieldname EQ 'WI_REJECT' OR
           fieldname EQ 'WI_DEADEX' OR
           fieldname EQ 'NOTE_EXIST' OR
           fieldname EQ 'ASYNCAGENT'.

  IF tcode = 'SWI2_ADM1'. " workitems ohne bearbeiter
    CLEAR field_cat.
    field_cat-col_pos = '0'.
    field_cat-key = 'X'.
    MODIFY field_lst FROM field_cat TRANSPORTING col_pos key
       WHERE fieldname EQ 'ASYNCAGENT'.
  ELSE.
    CLEAR field_cat.
    field_cat-tech = 'X'.
    MODIFY field_lst FROM field_cat TRANSPORTING tech
       WHERE fieldname EQ 'ASYNCAGENT'.
  ENDIF.

*- delete agents if necessary
  CALL FUNCTION 'SWP_ADMIN_DATA_READ'
    IMPORTING
      wf_settings = wf_settings
    EXCEPTIONS
      OTHERS      = 1.
  IF wf_settings-no_agents = 'X'.
    field_cat-tech = 'X'.
    MODIFY field_lst FROM field_cat TRANSPORTING tech
       WHERE fieldname EQ 'EXEUSER' OR
             fieldname EQ 'FORW_BY'.
  ENDIF.

ENDFORM.                    "prepare_format

*---------------------------------------------------------------------*
*       FORM CALL_UCOMM_WILIST                                        *
*---------------------------------------------------------------------*
*       Dynamic call to process the keyboard input.                   *
*---------------------------------------------------------------------*
*  -->  UCOMM                                                         *
*  -->  SELFIELD                                                      *
*---------------------------------------------------------------------*

FORM call_ucomm_wilist   USING ucomm TYPE syucomm
                               selfield TYPE slis_selfield.
  DATA: old_list_cnt    LIKE g_list_cnt,
        s_return        LIKE swl_return,
        line_idx        LIKE sy-tabix,
        l_tabix         LIKE sy-tabix,
        linesel_cnt     LIKE sy-tabix,
        b_line_selected LIKE sy-binpt,
        ls_wiheader     TYPE LINE OF swfatalvitm.
  DATA: lt_wrkitm       TYPE swfatwrkitm.
  DATA: delta_list_cnt  TYPE sytabix.
  DATA: ls_por          TYPE sibflpor.
  DATA: lt_por          TYPE sibflport.
  DATA: lv_ucomm        TYPE syucomm.
  DATA: l_excp          TYPE REF TO cx_swf_ifs_exception.
  DATA: ls_suspend      TYPE swp_suspen.
  DATA: ls_swwwidh      TYPE swwwidh.
  DATA: l_wi_index      TYPE sytabix.
  DATA: lh_grid         TYPE REF TO cl_gui_alv_grid.
  DATA: l_grid_title    TYPE lvc_title.
  DATA: l_count         TYPE sytabix.


  PERFORM pick_line USING    selfield-tabindex
                             zlt_wiheader
                    CHANGING line_idx
                             linesel_cnt
                             b_line_selected.

  LOOP AT zlt_wiheader INTO ls_wiheader WHERE b_marked EQ 'X'.
    ls_por-catid  = swfco_objtype_bc.
    ls_por-instid = ls_wiheader-wi_id.
    APPEND ls_por TO lt_por.
  ENDLOOP.

  IF lt_por[] IS INITIAL.
    READ TABLE zlt_wiheader INDEX line_idx INTO ls_wiheader.
    ls_por-catid  = swfco_objtype_bc.
    ls_por-instid = ls_wiheader-wi_id.
    APPEND ls_por TO lt_por.
  ENDIF.

************************************************************************
*    Refresh Instancemanager                                         *
************************************************************************
  TRY.
      CALL METHOD cl_swf_run_wim_factory=>initialize( ).
    CATCH cx_swf_ifs_exception INTO l_excp.
      CALL METHOD cl_swf_utl_message=>send_message_via_exception( l_excp ).
  ENDTRY.

  CASE ucomm.
************************************************************************
*    Filter                                                            *
************************************************************************
    WHEN '&ILT'.

************************************************************************
*    Refresh                                                           *
************************************************************************
    WHEN '1REF'.
      CALL METHOD int->refresh
        IMPORTING
          ex_delta_count = delta_list_cnt.
      CALL METHOD int->get_entries
        IMPORTING
          ex_wientries = lt_wrkitm.
      CLEAR zlt_wiheader[].
      PERFORM convert_to_alv_list USING    lt_wrkitm
                                           p_more
                                  CHANGING zlt_wiheader.
      MESSAGE s811(w8) WITH delta_list_cnt.
      selfield-refresh    = 'X'.
      selfield-row_stable = 'X'.

************************************************************************
*   Pick                                                               *
************************************************************************
    WHEN '&IC1'.
      IF linesel_cnt > 1.
        MESSAGE s201(wi).
        EXIT.
      ENDIF.
      IF  line_idx     = 0.
        MESSAGE s004(0k).
        EXIT.
      ENDIF.

      READ TABLE zlt_wiheader INDEX line_idx INTO ls_wiheader.
      ls_por-catid  = 'BC'.
      ls_por-instid = ls_wiheader-wi_id.

      IF ls_wiheader-wi_type = wi_flow.
        lv_ucomm = function_wi_workflow_display.
      ELSE.
        lv_ucomm = cl_swf_rdg_dispatcher=>c_function_wi_display.
      ENDIF.
      CALL METHOD cl_swf_rdg_dispatcher=>execute_dialog_request
        EXPORTING
          im_por      = ls_por
          im_function = lv_ucomm
        EXCEPTIONS
          OTHERS      = 1.
      IF sy-subrc <> 0.
        MESSAGE ID sy-msgid TYPE sy-msgty NUMBER sy-msgno
                   WITH sy-msgv1 sy-msgv2 sy-msgv3 sy-msgv4.
      ENDIF.

    WHEN OTHERS.

*      IF  line_idx     = 0.  "--- OSS note 1422569 ---
      IF linesel_cnt   = 0.
        MESSAGE s004(0k).
        EXIT.
      ENDIF.

      CALL METHOD cl_swf_rdg_dispatcher=>execute_dialog_request_multi
        EXPORTING
          im_por      = lt_por
          im_function = ucomm
        EXCEPTIONS
          OTHERS      = 1.
      IF sy-subrc <> 0.
        MESSAGE ID sy-msgid TYPE sy-msgty NUMBER sy-msgno
                   WITH sy-msgv1 sy-msgv2 sy-msgv3 sy-msgv4.
      ENDIF.

  ENDCASE.

  DATA: ls_layout TYPE slis_layout_alv.
  DATA: lt_filtered_entries TYPE  slis_t_filtered_entries.
  DATA: l_lines TYPE i.
  CALL FUNCTION 'REUSE_ALV_GRID_LAYOUT_INFO_GET'
    IMPORTING
      es_layout           = ls_layout
      et_filtered_entries = lt_filtered_entries
    EXCEPTIONS
      OTHERS              = 1.
  IF sy-subrc EQ 0.
    DESCRIBE TABLE lt_filtered_entries LINES l_lines.
    DESCRIBE TABLE zlt_wiheader LINES l_count.
    l_count = l_count - l_lines.
    PERFORM get_title USING l_count
                            g_windows_titlebar
                            l_grid_title.
    ls_layout-window_titlebar = l_grid_title.
    CALL FUNCTION 'REUSE_ALV_GRID_LAYOUT_INFO_SET'
      EXPORTING
        is_layout = ls_layout.
  ENDIF.

ENDFORM.                    "call_ucomm_wilist

*&---------------------------------------------------------------------*
*&      Form  set_sort_tab
*&---------------------------------------------------------------------*
*       text
*----------------------------------------------------------------------*
*      -->P_IT_SORT  sorttab (ALV format)
*----------------------------------------------------------------------*
FORM set_sort_tab CHANGING p_it_sort TYPE slis_t_sortinfo_alv.
  DATA: is_sort TYPE slis_sortinfo_alv.

  REFRESH p_it_sort.
  is_sort-tabname = 'WIHEADER'.
  is_sort-spos = 1.
  is_sort-fieldname = 'WI_CD'.
  is_sort-down = 'X'.
  APPEND is_sort TO p_it_sort.

  is_sort-spos = 2.
  is_sort-fieldname = 'WI_CT'.
  is_sort-down = 'X'.
  APPEND is_sort TO p_it_sort.

  is_sort-spos = 3.
  is_sort-fieldname = 'WI_ID'.
  is_sort-down = 'X'.
  APPEND is_sort TO p_it_sort.

ENDFORM.                               " set_sort_tab
*&---------------------------------------------------------------------*
*&      Form  get_workitem_header
*&---------------------------------------------------------------------*
*       text
*----------------------------------------------------------------------*
*      -->P_WI_HEADER  text
*----------------------------------------------------------------------*
FORM get_workitem_header USING    p_more      TYPE xfeld
                                  p_maxsel    TYPE tbmaxsel
                         CHANGING p_wi_header TYPE swfatalvitm.

  DATA: rangetab_for_id TYPE swfartwiid.
  DATA: rangetab_for_type TYPE swfartwitp.
  DATA: rangetab_for_creation_date TYPE swfartcrdat.
  DATA: rangetab_for_creation_time TYPE swfartcrtim.
  DATA: rangetab_for_task TYPE swfartrhtsk.
  DATA: rangetab_for_state TYPE swfartwista.
  DATA: rangetab_for_priority TYPE swfartprio.
  DATA: rangetab_for_dhsta TYPE swfartdhsta.
  DATA: lt_wrkitm TYPE swfatwrkitm.
  DATA: ls_wrkitm TYPE LINE OF swfatwrkitm.
  DATA: ls_alvitm TYPE LINE OF swfatalvitm.

  IF int IS INITIAL.
    int = cl_swf_rep_manager=>get_instance( ).
  ENDIF.

*- set selection properties
  IF p_more EQ 'X'.
    CALL METHOD int->set_property
      EXPORTING
        im_name  = if_swf_rep_workitem_selection=>c_get_administrator
        im_value = 'X'.
  ENDIF.

*- convert parameters
  rangetab_for_id[] = id[].
  rangetab_for_type[] = type[].
  rangetab_for_creation_date[] = cd[].
  rangetab_for_creation_time[] = ct[].
  rangetab_for_task[] = task[].
  rangetab_for_state[] = state[].
  rangetab_for_priority[] = prio[].
  rangetab_for_dhsta[] = dhsta[].

  CALL METHOD int->clear( ).
  CALL METHOD int->set_filter_strategy( filter ).

  CALL METHOD int->set_range_tab( rangetab_for_id ).
  CALL METHOD int->set_range_tab( rangetab_for_type ).
  CALL METHOD int->set_range_tab( rangetab_for_creation_date ).
  CALL METHOD int->set_range_tab( rangetab_for_creation_time ).
  CALL METHOD int->set_range_tab( rangetab_for_task ).
  CALL METHOD int->set_range_tab( rangetab_for_state ).
  CALL METHOD int->set_range_tab( rangetab_for_priority ).
  CALL METHOD int->set_range_tab( rangetab_for_dhsta ).
  CALL METHOD int->set_only_top_wi( top_only ).

  CALL METHOD int->set_maxsel( p_maxsel ).

  CALL METHOD int->read( ).

  CALL METHOD int->get_entries
    IMPORTING
      ex_wientries = lt_wrkitm.

  PERFORM convert_to_alv_list USING    lt_wrkitm
                                       p_more
                              CHANGING p_wi_header.


ENDFORM.                               " get_workitem_header

*---------------------------------------------------------------------*
*       FORM convert_to_alv_list                                      *
*---------------------------------------------------------------------*
*       ........                                                      *
*---------------------------------------------------------------------*
*  -->  WIHEADER                                                      *
*  -->  WIALVITM                                                      *
*---------------------------------------------------------------------*
FORM convert_to_alv_list USING    wiheader TYPE swfatwrkitm
                                  more     TYPE xfeld
                         CHANGING wialvitm TYPE swfatalvitm.
  DATA: ls_wrkitm TYPE LINE OF swfatwrkitm.
  DATA: ls_alvitm TYPE LINE OF swfatalvitm.
  DATA: lv_wi_handle TYPE REF TO if_swf_run_wim_internal.
  DATA: ls_admin TYPE swhactor.
  DATA: lt_agents TYPE tswhactor.

  LOOP AT wiheader INTO ls_wrkitm.
    MOVE-CORRESPONDING ls_wrkitm TO ls_alvitm.
    IF ls_wrkitm-wlc_flags O swfcr_p_asynchronous_rule.
      ls_alvitm-asyncagent = 'X'.
    ENDIF.
    IF more EQ 'X' AND ls_alvitm-wi_type EQ swfco_wi_flow.
      TRY.
          CALL METHOD cl_swf_run_wim_factory=>find_by_wiid
            EXPORTING
              im_wiid     = ls_wrkitm-wi_id
            RECEIVING
              re_instance = lv_wi_handle.
          lt_agents = lv_wi_handle->get_administrator_agents( ).
          READ TABLE lt_agents INDEX 1 INTO ls_admin.
          ls_alvitm-adm_agent = ls_admin.
        CATCH cx_swf_run_wim.
      ENDTRY.
    ENDIF.
    IF top_only IS INITIAL.
      APPEND ls_alvitm TO wialvitm.
    ELSE.
      IF ls_alvitm-wi_chckwi IS INITIAL.
        APPEND ls_alvitm TO wialvitm.
      ENDIF.
    ENDIF.
  ENDLOOP.

ENDFORM.                    "convert_to_alv_list

*---------------------------------------------------------------------*
*       FORM PICK_LINE                                                *
*---------------------------------------------------------------------*
*       ........                                                      *
*---------------------------------------------------------------------*
*  -->  SELFIELD_IDX                                                  *
*  -->  WIHEADER                                                      *
*  -->  INDEX                                                         *
*  -->  LINESEL_CNT                                                   *
*  -->  B_OK                                                          *
*---------------------------------------------------------------------*
FORM pick_line USING    selfield_idx LIKE sy-tabix
                            wiheader     TYPE swfatalvitm
                   CHANGING index        LIKE sy-tabix
                            linesel_cnt  LIKE sy-tabix
                            b_ok         LIKE sy-binpt.
  DATA: lines_marked LIKE sy-tabix,
        marked_idx   LIKE sy-tabix,
        cursor_line  LIKE sy-binpt.

  IF selfield_idx > 0.
    READ TABLE wiheader INDEX selfield_idx TRANSPORTING NO FIELDS.
    IF sy-subrc = 0.
      cursor_line = 'X'.
    ENDIF.
  ENDIF.

  LOOP AT wiheader TRANSPORTING NO FIELDS WHERE b_marked = 'X'.
    ADD 1 TO lines_marked.
    marked_idx  = sy-tabix.
  ENDLOOP.

************************************************************************
*  List tool algorithm                                                 *
************************************************************************
  IF cursor_line = 'X'.
    index = selfield_idx.
    IF lines_marked < 2.
      linesel_cnt = 1.
    ELSE.
      linesel_cnt = lines_marked.
    ENDIF.
    b_ok = 'X'.

  ELSEIF lines_marked = 1.
    index = marked_idx.
    linesel_cnt = 1.
    b_ok = 'X'.

  ELSEIF lines_marked > 1.
    linesel_cnt = lines_marked.
    b_ok = 'X'.

  ENDIF.

ENDFORM.                    "pick_line
*&---------------------------------------------------------------------*
*&      Form  GET_TITLE
*&---------------------------------------------------------------------*
*       text
*----------------------------------------------------------------------*
*      -->P_HITS  text
*      -->P_L_STRING  text
*----------------------------------------------------------------------*
FORM get_title  USING p_hits TYPE sytabix
                      p_title_template TYPE string
                      p_title TYPE lvc_title.
  DATA: l_string TYPE string.
  DATA: l_count(10) TYPE n.

  IF p_hits > 1.
    l_string = '(&1 entries)'(014).
  ELSEIF p_hits EQ 1.
    l_string = '(1 entry)'(015).
  ENDIF.
  l_count = p_hits.
  SHIFT l_count LEFT DELETING LEADING '0'.
  CONCATENATE p_title_template l_string INTO p_title SEPARATED BY space.
  REPLACE '&1' IN p_title WITH l_count.

ENDFORM.                    " GET_TITLE
*&---------------------------------------------------------------------*
*&      Form  CANCEL_WORKITEM
*&---------------------------------------------------------------------*
*       text
*----------------------------------------------------------------------*
*      -->P_ZLT_WIHEADER  text
*----------------------------------------------------------------------*
FORM cancel_workitem  TABLES p_zlt_wiheader TYPE swfatalvitm.
  TYPES: zlty_status TYPE RANGE OF sww_wistat.
  DATA: zlt_r_status TYPE RANGE OF sww_wistat.

  CONSTANTS: zlc_stat_complete TYPE sww_statxt VALUE 'COMPLETED',
             zlc_stat_cancel   TYPE sww_statxt VALUE 'CANCELLED',
             zlc_sign          TYPE  ddsign VALUE 'I',
             zlc_options       TYPE ddoption VALUE 'EQ'.

  zlt_r_status = VALUE zlty_status(
                       LET s = zlc_sign
                           o = zlc_options
                           IN sign   = s
                              option = o
                              ( low = zlc_stat_complete )
                              ( low = zlc_stat_cancel ) ).
*//Keep only the work items which has to be CANCELLED
  DELETE p_zlt_wiheader WHERE wi_stat IN zlt_r_status.

  IF p_zlt_wiheader[] IS NOT INITIAL.
    LOOP AT p_zlt_wiheader ASSIGNING FIELD-SYMBOL(<zlfs_wiheader>).
      TRY.
          CALL FUNCTION 'SWW_WI_ADMIN_CANCEL'
            EXPORTING
              wi_id                       = <zlfs_wiheader>-wi_id
              do_commit                   = abap_true
            IMPORTING
              new_status                  = <zlfs_wiheader>-wi_stat
            EXCEPTIONS
              update_failed               = 1
              no_authorization            = 2
              infeasible_state_transition = 3
              OTHERS                      = 4.
*- exception handling
        CATCH cx_swf_run_wim INTO DATA(lv_excp).
          DATA: zlr_txmgr TYPE REF TO cl_swf_run_transaction_manager.
          CALL METHOD zlr_txmgr->rollback( ).
      ENDTRY.
    ENDLOOP.
  ENDIF.
ENDFORM.

add parameter

call SWW_WI_ADMIN_CANCEL in loop

Workflow tips & tricks

SAP workflow is used for many different business scenarios. This blog will give tips and tricks for the basis part of SAP workflow.

Questions that will be answered in this blog are:

  • How can I send a reminder email to the workflow owners?
  • How to check how many items in the inbox a user has?
  • How to delete the items in the inbox of a user?
  • How to delete the items in the outbox of a user?
  • How can I terminate workflow(s) as administrator?
  • How do I execute general workflow activation?
  • Where can I find more FAQ and manuals on workflow?
  • How to solve workflow transport issues?
  • How can I add a general task to a transport?
  • How can I setup forwarding of workflow as admin?
  • How can I check if a user has setup a substitution?
  • How can I restart workflows?
  • What to check in case of delays in workflow?
  • How can I trigger workflow processing again after a system crash?
  • How to solve the Workflow error “maximum number of 10,000 nodes reached” error?

Workflow FAQ note

SAP has created an excellent FAQ note: 2214571 – Collection Note: Workflow troubleshooting guides, FAQs and important notes. This is a good starting point for find solutions to workflow issues.

Sending reminder email to workflow owners

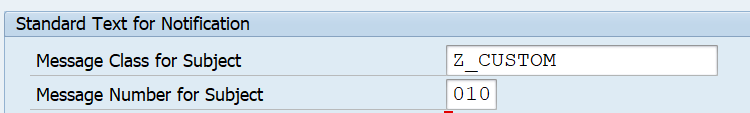

Program RSWUWFML2 can be used to send reminders to workflow owners that they still have open workflow items:

It is important to know that only reminders will be send in mail if the workflow owner user ID’s mail address in maintained in SU01.

Important explanation OSS note:

Important bug fix OSS notes:

Changing the message subject of the reminder mail

To change the message subject of a mail, create a new message in SE91. Example is class Z_CUSTOM message 010 with text: “Gentle reminder of workflow”. Now put in field message class for subject field the name of your class (Z_CUSTOM) and the message number in message number for Subject:

Changing the body of the message of the reminder mail

Goto transaction SE61 and select text type Text in Dialog. First the default text SWU_NOTIF_INBOX:

Now use the copy button to copy the text to a Z text. For example Z_SWU_NOTIF_INBOX. Change the text as per you requirement and activate the text.

Now you can use this new text in the workflow reminder mail program:

SAP workflow inbox

Using transaction SOY5 or via program RSSOINBO you can get an overview of the amount of workflow items per user:

Via program RSSOINBD you can delete the inbox of a user:

Removing work items from user inbox

There are many ways to remove work items from and end users inbox: 2382266 – How to remove work items from user’s Inbox.

Removing work items from user outbox

To delete expired items from the users outbox, run program RSSOEXDA: 2774728 – Remove entries from user Outbox.

Changing priority of a work item

To change priority of a work item in SBWP follow the instructions in OSS note 2863528 – How to change the priority of a work item from SBWP.

Terminating workflows as administrator

Start transaction SWIA:

In the second screen select all the items you want to terminate and use menu option Edit / Work Item / Logically Delete. The workitem will now to status CANCELLED. Then they can be archived (see blog).

See also OSS note 2422812 – How to delete workflow item from inbox and OSS note 1705866 – “Logically Delete” for a large number of work items.

For execution of mass logical deletion in SWIA, you must select all items and in the command area enter ADMC as command and press enter:

Or select all and choose menu option Edit/Work Item/Logically Delete.

Please note: mass cancellation is possible. Mass completion not. Only via ABAP code (read this blog for the custom code which performs this). See OSS note 2650820 – Mass complete work items manually.

Restarting workflows

Transaction SWPR can be used to restart a workflow:

When there was a system crash transaction SWPC can be used to continue workflows:

Bug fix note: 3270257 – Multiple selection value help does not work for input field “Multistep task” in transaction SWPC.

How to find top level ID for a workflow item?

To find the top level for a workflow, follow the instructions in OSS note 3277360 – How to find the Top-Level work item ID of a workflow.

Reducing size of workflow tables

Workflow tables start with SWW. They can grow very large in a productive environment. For analysis see blog. For deletion and archiving see blog.

For workflow from idocs specifically, read OSS note 1813141 – How to delete unnecessary workitems of IDoc processing.

Specific note: 2847116 – SWF_TRC_CONT table huge growth.

Deleting workflow trace can be done via program RSWEQDELETE (see note 2162503 – Deleting trace records from Workflow tables).

Basic workflow activation in a new system

For activating workflow in a new system or after an S4HANA upgrade, please read this dedicated blog.

Delays in workflow

When you are experiencing delays in workflow, read OSS note 2146408 – Delay in executing a Workflow. Also check OSS note 888279 – Regulating/distributing the workflow load for load balancing on workflows.

Transport issues with workflow

Workflow development objects can give some issues in transports, since not all objects are immediately put into a transport upon development.

If you have set a workflow task to general and want to transport it, use program RHMOVE30 to put it into a transport. For more background read this SAP blog.

Substitution and forwarding

Using transaction SBCS_EXTCOM you can setup forwarding for a user ID towards different user ID as admin. This might be needed in case of illness of a user:

In the third tab of this transaction you can see if a user has setup a substitution himself.

Workflow error “maximum number of 10,000 nodes reached”

If you get this error, increase the value Maximum node number in transaction SWPA:

Do not just increase, but read OSS note 2397114 – Workflow error “maximum number of 10,000 nodes reached”, which advices to check the workflow definition, before increasing this value.

Use report RSWP_CHANGE_MAX_NODES to solve your immediate issue.

Workflow delegation and substitution

SAP workflow has options for delegation and substitution (for example when person is on holiday). Read more on this in the SAP wiki for substitution.

Workflow and system copy

After a system copy, check the workflow configuration again. See OSS note 3227538 – Workflow background steps are not getting completed after system copy.

Activating workflow in S4HANA

This blog will explain how to activate workflow in S4HANA. If you have to activate workflow in classic ECC system use this blog.

Questions that will be answered in this blog are:

  • How to activate workflow in S4HANA?
  • What do I need to do with the workflow activation in case of an upgrade to S4HANA?
  • Where to find more background information on workflow activation in S4HANA?
  • Why is WF-BATCH replaced with SAP_WFRT user?

Workflow activation in S4HANA

First make sure you have created system user SAP_WFRT. Start with assigning SAP_ALL to this user. You can replace it with lower rights after the activation is done properly according to OSS note 1574002 – WF-BATCH and SAP_WFRT Authorizations.

Start transaction SWU3:

Select the Edit Runtime Environment and press the button Execute Activity. This will activate all the actions below.

After it is done you can press the button Start Verification Workflow to check if the workflow runs properly. After 1 minute (it needs compilation in the background) start transaction SBWP.

All background information regarding SWU3 can be found in OSS note 2366252 – Transaction SWU3 explained.

Activating workflow after upgrade to S4HANA

After upgrading to S4HANA workflow will not work any more. You first need to create system user SAP_WFRT and redo the SWU3 setup.

Background user SAP_WFRT will replace background user WF-BATCH.

For more background on this replacement see oss note 2568271 – Change of workflow system user and workflow system jobs with S/4HANA On-Premise 1709 and oss note 2637240 – Error in SWU3 – System user ‘SAP_WFRT’ does not exist.

If you have issues with the workflow batch jobs after the upgrade, please check OSS notes:

After the user and RFC activation you need to schedule the new workflow jobs in SJOBREPO:

Read OSS note 3109917 – How to change the step user of workflow system jobs while keep the other technical jobs in job repository unchanged for instructions on the job user for workflow.

Explanation OSS notes:

Workflow and SNC

If you also use SNC, please follow the instructions in OSS note 3137350 – Workflow RFC destination no longer works after SNC activation carefully.

More workflow

For workflow tips and tricks: read this blog.

Setup of FIORI my workflow inbox: read this blog.

For deletion and archiving of workflow: read this blog.

Workflow initial configuration

This blog will explain the steps need to make the SAP workflow engine to work. If you have to set up the SAP workflow engine in S4HANA, please read this dedicated blog.

Questions that will be answered are:

  • How to execute the automatic workflow configuration?
  • What are common issues with workflow configuration?
  • How to test the automatic workflow configuration?
  • What other settings are to be done for custom workflow building?

Automatic workflow configuration

To setup workflow configuration start transaction SWU3. This brings you to the Automatic Workflow Customizing screen.

Workflow customizing start screen

If the system is new then you see most of the icons are red. Hit the Automatic Customizing button.

Depending on your version all actions might be completed. In this step in the background the user WF-BATCH is created along with the RFC connection WORKFLOW_LOCAL_<CLIENT>.

In the newer versions of SAP netweaver this automatic step might end up with this status:

Status after automatic workflow customizing

Zooming in on the RFC connection issue:

Configure RFC workflow local destination

You will see as analysis that the user WF-BATCH is not yet created. In the newer SAP versions SAP expects you to create WF-BATCH first, before you run the automatic workflow configuration. If you have done the auto configuration and get this message, just create WF-BATCH user in SU01. Then restart SWU3 and repeat the step for automatic customizing. It will be correct:

Final setup done picture

Testing the workflow setup

On the SWU3 screen hit the Start Verification Workflow button (if needed accept the event linkage activation). Be patient now for at least 5 minutes, since in the background normally a lot of code is compiling. Then go to the inbox to check if you validation workflow was properly launched. In S4HANA the button is no longer there on the SWU3 screen to jump to the inbox. You still can use the inbox button on the SAP start screen or use transaction code SBWP.

In the inbox you should see an item. Open it and make a decision:

Workflow verification end result

This will end the verification.

Common issues

Most common issue is to execute the automatic customizing without sufficient authorizations.

Best practice from SAP basis: execute SWU3 directly after installation with SAP_ALL still attached to your user ID. Then only hand over the system to the authorization team. After activation, you can remove SAP_ALL and provide the authorizations as explained in OSS note 1574002 - WF-BATCH and SAP_WFRT Authorizations.

For further troubleshooting and more background information on SWU3 SAP has released OSS note 2366252 – Transaction SWU3 explained.

Further explanation OSS notes:

Settings for workflow development

For custom workflow development you need to execute one additional step in SWU3 to maintain the Prefix Numbers:

Workflow development setup

In the number range screen add the 900 series for custom developed workflows:

Workflow development setup 900 number range

This setting will be transported, so you only execute this action on development system.

More workflow

For workflow tips and tricks: read this blog.

Setup of FIORI my workflow inbox: read this blog.

For deletion and archiving of workflow: read this blog.
