Category: GUI

Transaction variant

This blog will explain how to create a transaction variant.

It will also give a list of how-to OSS notes that might help you for your situation.

Questions that will be answered in this blog are:

  • How to set up a transaction variant?
  • Where can I find the restrictions for transaction variants?
  • Where can I find how-to instructions for transaction variants?

Set up transaction variant

As example we will use SU3 transaction to maintain own user data. On the screen there is also a password reset button we want to remove:

To set up a transaction variant start transaction SHD0:

Enter in transaction code SU3 and in the variant name the Z name of the variant you want to create. Now hit the create button. Execute the transaction and go back to the popup screen. On the popup screen change the menu options and toggle the button to invisible:

The transaction variant is now created:

To assign a transaction code, don’t go to transaction SE93, but stay in the SHD0 transaction and select the menu option Goto / Create Variant Transaction:

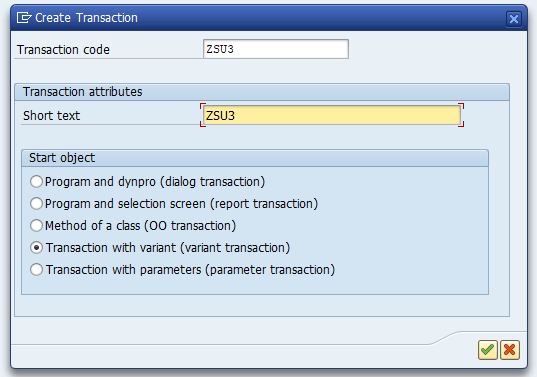

Assign a ZSU3 as transaction code. Save the variant transaction and test it by entering the new ZSU3 transaction code:

The password reset button is gone in this variant.

SAP references

SAP blog on transaction variant: link.

SAP help file on transaction variant: link.
Restriction OSS note: 331360 – Transaction variants are not always possible.

OSS notes

How-to OSS notes:

SAP GUI default change to Edge

After upgrading to SAP GUI 7.70 you can change the default browser from Internet Explorer to Edge.

More on SAP support for browsers in general can be found in this blog.

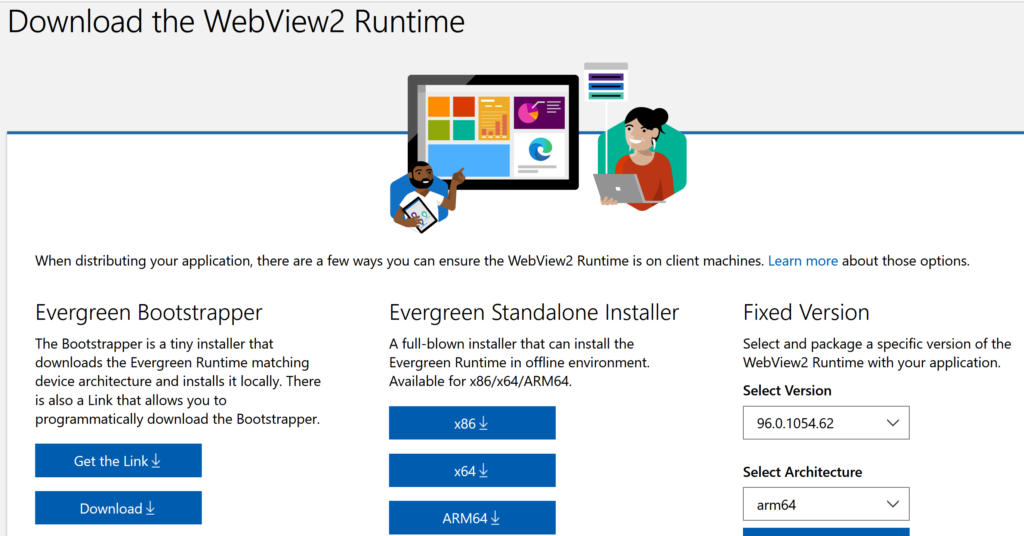

Prerequisite: install WebView2

First read OSS note 2913405 – SAP GUI for Windows: Dependencies to browsers / browser controls. This note describes the need for you to download and install the Microsoft WebView2 framework:

Impact of WebView2: 2901278 – SAP GUI HTML Control based on Chromium Edge: Legacy HTML does not work (correctly) / present limitations.

Switch browser setting for SAP GUI

Now you can go to the settings of you SAP 7.70 GUI and change the default browser in the Interaction Design/ Control Settings:

If fallback to Internet Explorer is still required, read this note: 2957665 – SAP GUI HTML Control: Browser Control Fallback Configuration.

In case the option is locked: 3191784 – Edge (based on Chromium) HTML control option is locked in the SAP GUI Control Settings.

If you need to build a workstation package with the default Edge setting, read this OSS note: 3221242 – How to set the Edge (based on Chromium) as the default browser control in single file Installer aiming SAP GUI distribution on multiple workstations.

Switch browser setting for SAP Business Client

For SAP business client the settings are in the Settings/Browser section:

Here you can choose the browser and download location to be used.

Chromium security updates

There might be a lot of hotnews and security OSS notes on the Chromium part. Main OSS note: 2622660 – Security updates for the browser control Google Chromium delivered with SAP Business Client.

OSS notes

Relevant OSS notes:

Relevant blogs on browsers and SAP web technology

More blogs on browsers and browsing technology:

  • HTTP/2 support for FIORI and ABAP web applications: read this blog.
  • TLS v1.2 setup in ABAP system: read this blog.
  • Webadmin pages disablement: read this blog.
  • More on SAP support for browsers in general can be found in this blog.
  • How to check HTTP usage in your system: read this blog.
  • FIORI gateway timeout settings: read this blog.
  • FIORI cache refresh: read this blog.
  • FIORI gateway tips and tricks: read this blog.
  • Webdynpro Unified Rendering updates: read this blog.

SAP Screen Personas installation and basis configuration

SAP Screen Personas can be used to create variants of SAP GUI transactions. This blog will describe the basis installation and basis configuration part of SAP Screen Personas.

Questions that will be answered are:

  • How to install SAP Screen Personas?
  • How to perform the basis configuration of SAP Screen Personas?
  • How to check the health of SAP Screen Personas?

Installation of SAP Screen Personas

The installation process and prerequisites are clearly listed on the SAP Screen Personas help file for installation.

If you have an older version of SAP netweaver; carefully check the kernel requisites. Newer versions will not have any issue. For each support package there is a separate OSS note: 3115416 – SAP Screen Personas 3.0 SP14: Released Notes Information.

Installation of the PERSONAS addon can be done via SPAM/SAINT (simplest way) or via the maintenance planner. Next to the core add on, apply the support packages.

After the addon installation on development system, you need to open the namespace /PERSONAS in SE06. Otherwise you will not be able to apply bug fix OSS notes.

Read the master note per support package to see which OSS notes need to be applied.

Basis configuration of SAP Screen Personas

Basis configuration of SAP Screen Personas is described on the SAP help file.

Activation steps in SICF:

  • Activate SICF nodes personas and personas3
  • Activate SICF nodes se (for the slipstream engine)
  • Make sure ITS webgui is active in SICF, if not follow the instruction on this blog

In PFCG generate these roles:

  • /PERSONAS/ADMIN_ROLE
  • /PERSONAS/CONSUMER_ROLE
  • /PERSONAS/EDITOR_ROLE

Validation of installation and check for new OSS notes

Start transaction /PERSONAS/HEALTH to see the health status and check for new OSS notes:

The first tab has the services status. You might find an issue for WebDynpro Compression. If this is red, goto SCIF node UI5_UI5 and set the compression to Yes:

Next check on the tab System Status:

In case of issues with Transport system synchronization run program /PERSONAS/CONVERT_E071.

On the Notes Status tab press the Check Notes button to see if there are any new relevant OSS notes. Apply the notes and make sure all is ok:

Update of client source files

Per support package SAP releases an OSS note with more frequently released patched for the client source files: 3115432 – SAP Screen Personas 3.0 SP14: Update of Client Sources Files.

ACF: Active Component Framework

SAP uses the ACF (Active Component Framework) in some solutions to provide extra functionality between the desktop and the SAP system.

This framework is known to be troublesome. If possible avoid the usage. If you cannot avoid it, use this blog for know fixes.

Questions that will be answered are:

  • Why avoid the use of the ACF framework?
  • Which use cases can already avoid ACF framework?
  • What are know issues of the ACF framework?
  • What are trouble shooting OSS notes for the ACF framework?

Why to avoid the ACF framework?

The ACF framework relies on a separate installation file on the desktop of the end user. In the default scenario, this file is present on the SAP server and will be pushed to the end user when needed. But most of the desktop software settings on the users desktop will block this file for security reasons. This will force you to distribute these files via the desktop team. After a support pack or upgrade, the ACF file gets renewed and again you have to take care. The ACF framework also depends on the JAVA versions installed on the desktop and the browser.

The ACF framework is known to be delivering nasty issues which are hard to tackle and solve. Any software change on the desktop can lead to issues with the ACF framework.

Avoid the use if possible.

Actions to move away from ACF usage

If you use ACF in the contect of PLMWUI, follow these instructions in OSS note 2879616 – Steps to configure ACF Replacement functionality in PLM WebUI to have the same functionality without ACF.

For the ABAP upload/download use case of ACF, follow the instructions in OSS note 2438690 – Moving to a Plugin-Free Web and ACF file Upload/Download/Execute component.

If you use SAP solution manager documentation (SOLDOC), apply OSS note 3009338 – SOLDOC: SAP GUI office Integration to shift from ACF to normal browser support.

ACF version and distribution

You can determine you current ACF version by following the instructions in OSS note 1481194 – Determination of ACF version.

Installation and download instructions of the ACF files are described in OSS note 766191 – Installation of Active Component Framework. Prerequisites for running ACF are listed in OSS note 1150277 – Prerequisites for using ACF.

Automatic download or installation considerations are described in OSS note 1488874 – ACF – automatic download or installation.

If you update your browser, or use Citrix, read this OSS note 1766401 – ACF: Switch to new operating system or Internet Explorer.

Patch history of ACF is listed in OSS note 1878583 – ACF: File upload/download/execute patch history.

ACF troubleshooting

For ACF troubleshooting, check the following OSS notes:

Activate SAP GUI for HTML via integrated SAP ITS

For users that do not use the SAP GUI regularly, you can use the SAP GUI for HTML as an alternative. The end users will then access the SAP system via the GUI shown in the web browser. This way the end user does not need to install the fat client on his laptop or desktop.

Questions that will be answered in this blog are:

  • How to activate the SAP GUI for HTML?
  • How to change the theming?
  • How to monitor the ITS behind the SAP GUI for HTML?

Activation of SAP GUI for HTML via integrated ITS

In transaction SICF activate the SAP GUI for HTML node /sap/bc/gui/sap/its/webgui:

Look and feel of the SAP GUI for HTML

OSS note 1508958 – Look and Feel in the WEBGUI explains the different themes for SAP GUI for HTML. OSS note 2540597 – Supported Themes for SAPGUI for HTML explains the support of different theme versions per netweaver version. Note 1656975 – How to set the theme for SAPGUI for HTML? explains how to set the theme.

Monitoring the SAP GUI for HTML via ITS tools

The SAP GUI for HTML is using SAP ITS (internet transaction services) to render the HTML pages. Transaction SITSPMON is the monitoring transaction for ITS:

If you have issues with the ITS web gui, this note explains which information to download from SITSPMON and add to the ticket: 3010580 – SITSPMON: How to send ITS Support Information in a Support Incident. For this function also apply OSS note 2948114 – SITSPMON: Improvement of Support Information Tab.

Health check feature

Apply the OSS notes mentioned in 3031743 – WebGUI Health Check feature to activate the Health check tab:

Known issues

If you get a popup stating Transaction SMEN is locked and you are redirected to the logoff page, please check OSS note 2874027 – Transaction SMEN is locked in direct webgui.

Known limitations

SAP GUI for HTML has known limitations. These limitation vary per SAP netweaver and S/4HANA version. The main OSS note is: 314568 – SAP GUI for HTML functionality / Limitations / Sp. Behaviour. This note has a reference to the restrictions of SAP GUI for HTML per version.

For ABAP developers there is a specific OSS notes on which developments are possible ,and which ones not, for Webgui as in comparison to SAP GUI: 3024355 – Webgui HTML Viewer: Restrictions compared to SAP GUI for Windows.

Full release notes are published in OSS note 2658822 – Release notes for SAP GUI for HTML (short WEBGUI).

Kernel updates

The SAP GUI for HTML is very sensitive for issues in the SAP kernel. When applying a kernel update, test the use of SAP GUI for HTML carefully for the functions your business needs. More on kernel patching strategy can be found in this blog.

Upload and download of files with the WEBGUI file browser

For upload and download of files with ITS webgui, you need to use the WEBGUI file browser. How to use this is explained in OSS note 2249454 – ITS Up/Down: Using the WEBGUI File Browser. See also: 2636752 – WebGUI File Browser: option in file save dialog to save to native file system.

Other OSS notes

New service handler CL_HTTP_EXT_ITS_2 replacing CL_HTTP_EXT_ITS. See OSS note 2860209 – SAP GUI for HTML: New Service Handler.

ITS support info might be needed by SAP. For this read note 2199237 – ITS: How to download ITS SupportInfo file.

SAP GUI Scripting

Diverse tools use SAP GUI scripting: test tools to perform regression testing, load testing, solution manager CBTA, etc. Also robotizing tools often use GUI scripting.

Questions that will be answered in this blog are:

  • How to enable GUI scripting in the SAP system?
  • How to make sure only the allowed users run GUI scripting?
  • How can I record an SAP GUI script and execute a playback of the recorded script?

Server side enabling GUI scripting

First you need to allow GUI scripting on the server side. This can be done by setting system parameter sapgui/user_scripting to the value TRUE. This is done in transaction RZ11.

Client side enabling GUI scripting

In your SAP gui, goto the options. In the Accessibility & Scripting part, enable the scripting.

At the top part you can see the installation status of scripting tools from SAP itself.

Securing scripting

If you want to securely control which user is allowed to use and execute scripting, you have to set the system parameter sapgui/user_scripting to TRUE. Now any user who is having the authorization object S_SCR is allowed to perform scripting. User who lack the authorization object will cannot run the script.

More information can be found in OSS note 983990 – SAP GUI Scripting security: Enable Scripting per system user. And OSS note 2565390 – SAP GUI Scripting: Changed behavior for combination of profile parameters sapgui/user_scripting_set_readonly and sapgui/user_scripting_per_user.

Security guide for SAP GUI scripting can be found in this link.

Recording and playing an SAP GUI script

You can record a script by going to the button Customize Layout and selecting the option Script Recording and Playback..:

Now the GUI scripting record and playback tool opens:

By pressing record, you can start recording a script. When you are done stop it and save it. You can playback a script with the play button.

Sample applications can be found in OSS note 1441550 – SAP GUI scripting: Sample applications.

More background information

More information can be found in OSS note 2296251 – How can SAP GUI Scripting be enabled?. And 2811334 – Prerequisites to record a SAP Gui Script.

Restrictions of SAP GUI scripting are listed in OSS note 587202 – Restrictions when using SAP GUI Scripting.

SAP GUI patching

This blog will zoom in on SAP GUI patching.

Questions that will be addressed are:

  • Where can I find the latest SAP GUI patch availability status?
  • Where can I find the planning for SAP GUI patches?
  • What should be my SAP GUI patch and upgrade policy?

SAP GUI latest patch availability overview and future planned patches

One of the best places to check the latest available is on the SAP blog: SAP GUI latest patch. This site also contains the planning for the next upcoming patch.

More on the new SAP GUI 8.0 can be found in this blog.

Current SAP GUI support overview

The SAP GUI support dates are published by SAP in OSS note 147519. Note 66971 – Supported SAP GUI platforms contains the supported platforms. This is important when also a new Windows platform (like Windows 11) is released. The expected release dates for GUI patches and versions for windows are listed in OSS note 1053737 – Expected release dates for SAP GUI for Windows.

GUI integration testing

When upgrading and/or patching of SAP GUI, consider following elements as well:

Corresponding NWBC backend OSS notes

When patching the NWBC front end, or when using NWBC html client, you should also check for server side corrections. The list of most recent note(s) to be applied is kept in OSS note 1353538 – NWBC -Patch Collection- SERVER SIDE (ABAP)+NWBC for HTML. To retrieve your current NWBC backend server patch version follow the instructions in OSS note 1864151 – How to determine the version and Patch Level of NWBC Runtime Environment.

SAP GUI patching policy

SAP GUI and its patches tend to have very short support timelines. An SAP GUI version nowadays is only supported up to max 2 years after release. Reason behind this: the SAP GUI builds on top of windows component which have very short support cycle.

If your company policy is to always have support IT software, you will have to plan and execute an SAP GUI upgrade almost yearly to stay within full SAP support. Put it on your yearly budget and execution calendar as a recurring item.

If you don’t want to go into this yearly effort of testing, packaging and deploying the SAP GUI to your end users, you can opt for this, as long as you are aware of the consequences. Just make sure of the following two main items:

  1. Inform your IT management and service managers that you run the GUI without support, and they approve it.
  2. Check with your windows team that they will still have the libraries in windows desktop/laptop that the SAP GUI needs.
